Affixes#

Affixes define two additional numbers for each message in a track: The prefix (time before) and suffix (time after).

BMusic computes the available time while avoiding overlaps between nearby messages.

Affixes are used in almost every procedure: In a hammer, for example, the affixes define how much time is available to anticipate and recoil.

What are affixes?#

Most of the time in animations, we animate many frames around a message. For example, a hammer may anticipate the hit by moving back before the hit, and recoil after.

If we only have a single message (or messages very far apart), this is simple: Just hard-code the movements and paste them where the message appears.

But, if we have many messages close to each other, the keyframes may overlap: There might not be enough time between two messages for the hammer to recoil and anticipate completely.

The solution is to check the proximity of the messages immediately before and after our current message. We then adjust (e.g. shorten the motion) to avoid the overlap.

This is common enough that BMusic provides tools to compute how much time is available before and after each message.

These are called affixes: The prefix is the time before, and the suffix is after.

How affixes are computed#

The bmusic.compute_affixes() function takes in a few notable parameters:

max_prefix: Max duration of the prefix.
max_suffix: Max duration of the suffix.
split: Explained below.

The main complexity is in dealing with overlaps. Different applications may require different ways of choosing which affix to shorten.

This is set by the split parameter.

Note

For example:

For a hammer, it would be ideal to shorten the two equally: If we have a short period of time between two messages, the hammer should both recoil and anticipate quickly.

For a glow-fade (where the prefix is quickly getting to the peak brightness, and the long suffix is fading away), we want to only shorten the suffix: If there is overlap, we want to keep the full prefix (which is relatively short) of lighting up, while cutting the suffix a bit short.

For a given overlap, the new splitting point is computed using split. The splitting point is clamped to be between the original messages.

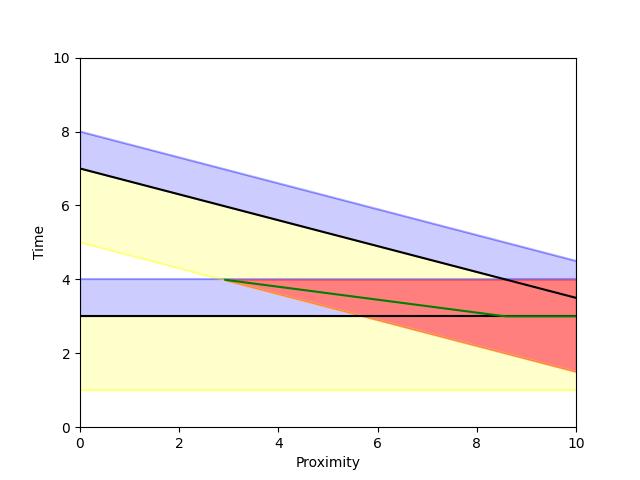

Consider these illustrations:

Imagine we have two messages, represented in black. In yellow is the prefix, and blue is the suffix.

The X axis shows how close the messages are to each other, and illustrates how the splitting system works as the messages get closer.

The Y axis is a slice of the resulting timeline.

Notice how on the left (small values of x), the messages are far apart. If we consider the vertical slice, for example, at x=1, the messages can have their full prefix and suffix.

But on the right side, they overlap. For example, at x=4, the red region shows where they overlap.

At the more extreme end, x=9, they are so close that the top message (in black) falls inside the first message’s suffix (the blue/red region).

We solve this problem by calculating a split point, in green. In this example, split=0.5, meaning the split point is halfway between the overlap.

Areas under the split become the shortened suffix of one message, and above is the shortened prefix of the other.

Notice how the split is clamped to be between the original messages, shown when it flattens as it touches the bottom message. This means that the bottom message’s suffix completely disappears.

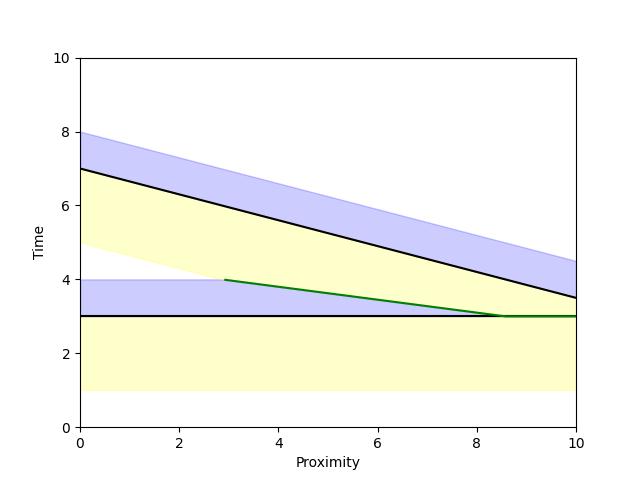

Here, the final result is shown. When the messages don’t overlap, they have their normal affixes. When they do overlap, the split line is used.

BMusic API#

The bmusic.AffixMessage class extends bmusic.Message with two new fields: prefix and suffix.

Compute affixes for a track with bmusic.compute_affixes().

affixes = bmusic.compute_affixes(midi)
for msg in affixes:
    # msg is an AffixMessage, which is a subclass of Message.
    print(msg)
    print("Prefix:", msg.prefix)
    print("Suffix:", msg.suffix)
